JA Solar JAM78S30MR
JA Solar JAM78S30MR
580W 585W 590W 595W 600W 605W JA Deepblue 3.0 Series Half Cell Module, with higher power generation better LCOE, better temperature coefficient, lower LID and better low irradiance response.
Message
Previous
Previous:Jinko Tiger Bifacial Pv Module 455W 460W 465W 470W 475W
Next
Next:JA Solar JAM72S30GR

Product Details

MECHANICAL DATA
CellMono
Weight30.5kg
Dimensions2465±2mm*1134±2mm*35±1mm
Cable Cross Section Size4mm²(IEC)，12 AWG(UL)
No. of cells156(6*26)
J-BoxIP68, 3 diodes
ConnectorQC 4.10-351/ MC4-EVO2A


ELECTRICAL DATE(STC)
Rated Maximum Power(Pmax)[W]580585590595600605
Power Tolerance0~+5W
Open Circuit Voltage(Voc) [V]53.1153.253.353.453.553.61
Maximum Power Voltage(Vmp) [V]44.3544.5644.845.0545.345.53
Short Circuit Current(lsc) [A]13.8413.8813.9313.9814.0314.08
Maximum Power Current(lmp) [A]13.0813.1313.1713.2113.2513.29
Module Efficiency[%]20.70%20.90%21.10%21.30%21.50%21.60%

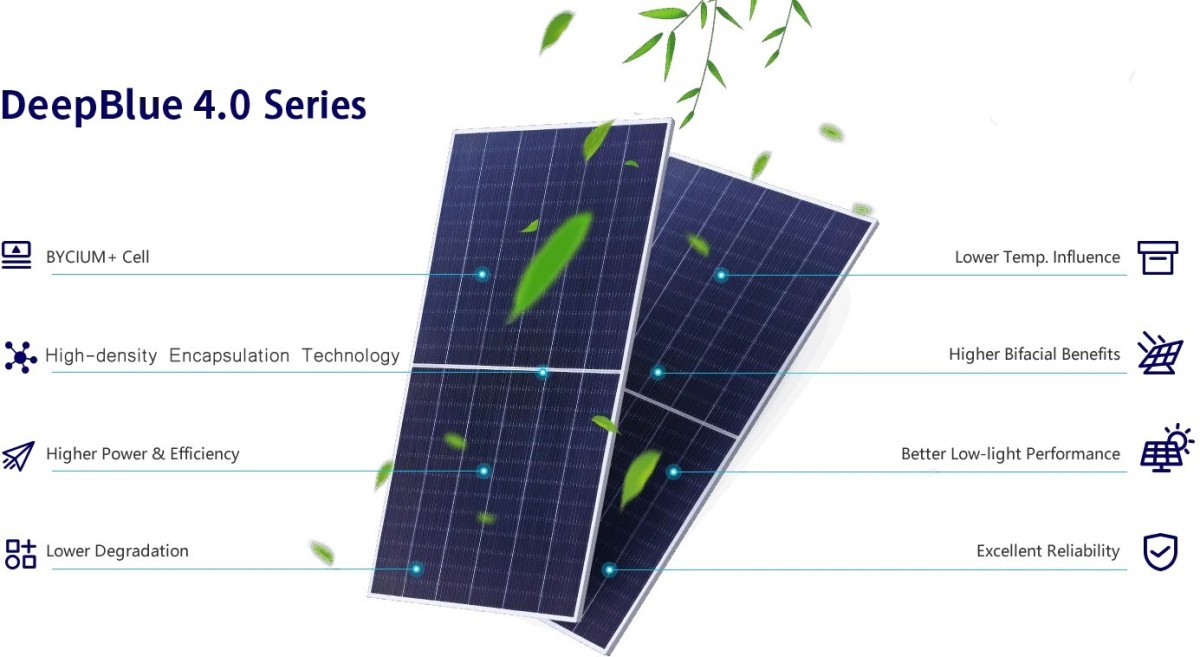

JA Solar JAM78S30MR 1
