JA Solar JAM72S30GR
JA Solar JAM72S30GR
570W 575W 580W 585W 590W 595W JA Deepblue 3.0 Series Half Cell Module. Assembled with 11BB PERC cells and gapless ribbon connection technology, the modules can offer higher output power with improved module efficiency, the reduction of cells gaps brings outstanding module appearance. The half-cell configurature makes less shading effect, lower risk of hot spot, as well as more reliable and stable power generation.
Message
Previous

Product Details

MECHANICAL DATA
CellMono
Weight27.3kg
Dimensions2278±2mm*1134±2mm*30±1mm
Cable Cross Section Size4mm²(IEC),12 AWG(UL)
No. of cells144(6*24)
J-BoxIP68, 3 diodes
ConnectorQC 4.10-351/ MC4-EVO2A


ELECTRICAL DATE(STC)
Rated Maximum Power(Pmax)[W]540545550555560565
Power Tolerance0~+5W
Open Circuit Voltage(Voc) [V]49.649.7549.950.0250.1550.28
Maximum Power Voltage(Vmp) [V]41.6441.841.9642.1142.2742.42
Short Circuit Current(lsc) [A]13.8613.931414.0714.1414.21
Maximum Power Current(lmp) [A]12.9713.0413.1113.1813.2513.32
Module Efficiency[%]20.90%21.10%21.30%21.50%21.70%21.90%

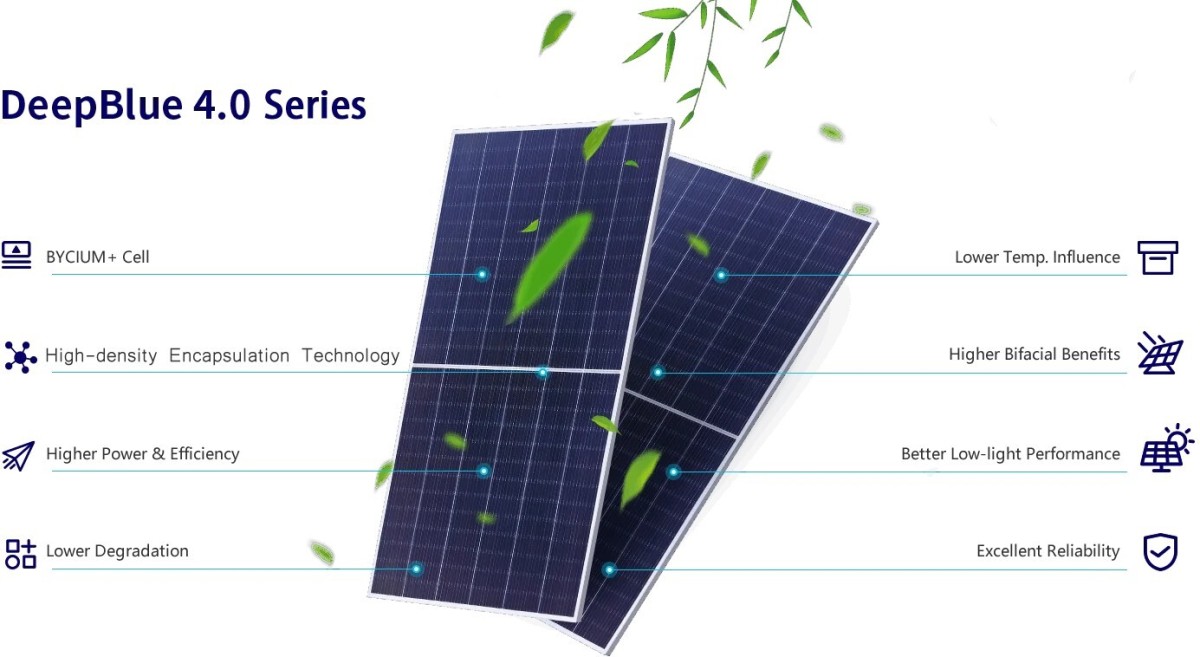

JA Solar JAM72S30GR 1
