Must Inverter Off Grid Solar Inverter PV1800 PREM Series 1.6-5.5KW
Must Inverter Off Grid Solar Inverter PV1800 PREM Series 1.6-5.5KW
PV1800 PREM is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PREM Series can run without battery. The Maximum PV array open circuit voltage can reach 400V/450V. which Can help customers make full use of solar energy.
Message

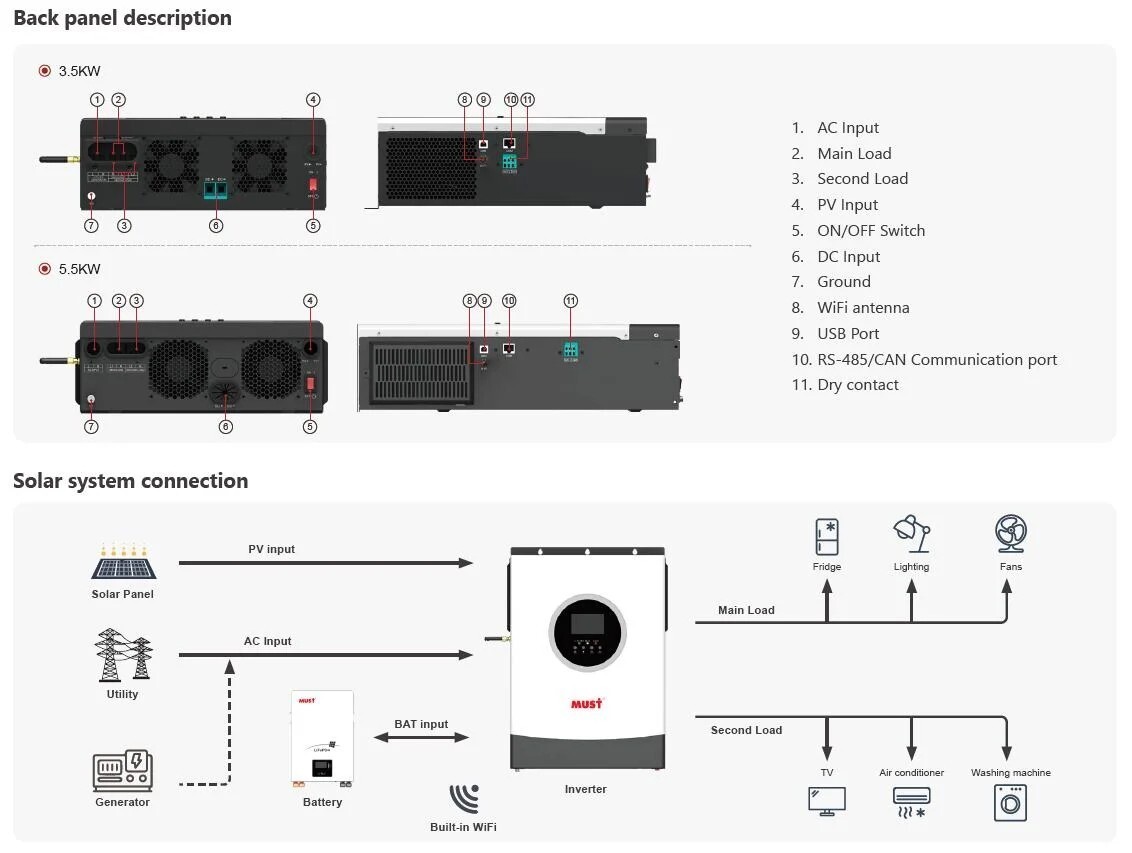

Must Inverter Off Grid Solar Inverter PV1800 PREM Series 1.6-5.5KW 1

MODELPV18-1612 PREMPV18-2524 PREMPV18-3024 PREMPV18-3524 PREMPV18-5548 PREM
Nominal Battery System Voltage12VDC24VDC24VDC24VDC48VDC
INVERTER OUTPUT
Rated Power (Main+Second Load)2000VA/1600W2500VA/2500W3000VA/3000W3500VA/3500W5500VA/5500W
Surge Power3200W5000W6000W7000W11000W
WaveformPure sine wave
AC Voltage Regulation (Batt.Mode)230VAC±5%(Setting)
Inverter Efficiency(Peak)90~93%
Transfer Time10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage230VAC±5%
Selectable Voltage Range170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage12VDC24VDC24VDC24VDC48VDC
Floating Charge Voltage13.7VDC27.4VDC27.4VDC27.4VDC54.8VDC
Overcharge Protection15VDC30VDC30VDC30VDC60VDC
SOLAR CHARGER &AC CHARGER
Maximum PV Array Open Circuit Voltage400VDC400VDC400VDC450VDC450VDC
Maximum PV Input Current16A18A18A18A28A
Charging Algorithm3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power2000W4000W4000W4000W6000W
PV Array MPPT Voltage Range(Typ.)30~320VDC60~360VDC
Maximum Solar Charge Current80A100A
Maximum AC Charge Current80A60A60A60A100A
Maximum Charge Current80A100A
MECHANICAL SPECIFICATIONS
Machine Dimension (W*H*D)(mm)290*367*111290*367*111290*367*111318*367*122.5318*454*122.5
Package Dimension (W*H*D)(mm)446*394*187446*394*187446*394*187459*410*200544.5*410*200
N.W (kg)6.46.66.67.29.0
G.W (kg)7.47.67.68.210.5
OTHER
Humidity5% to 95% Relative humidity (Non-condensing)
Operating Temperature0°C~50°C
Storage Temperature-15°C~60°C
Warranty2years
CERTIFICATION & STANDARDS
CE-EMC+LVD (EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2)
