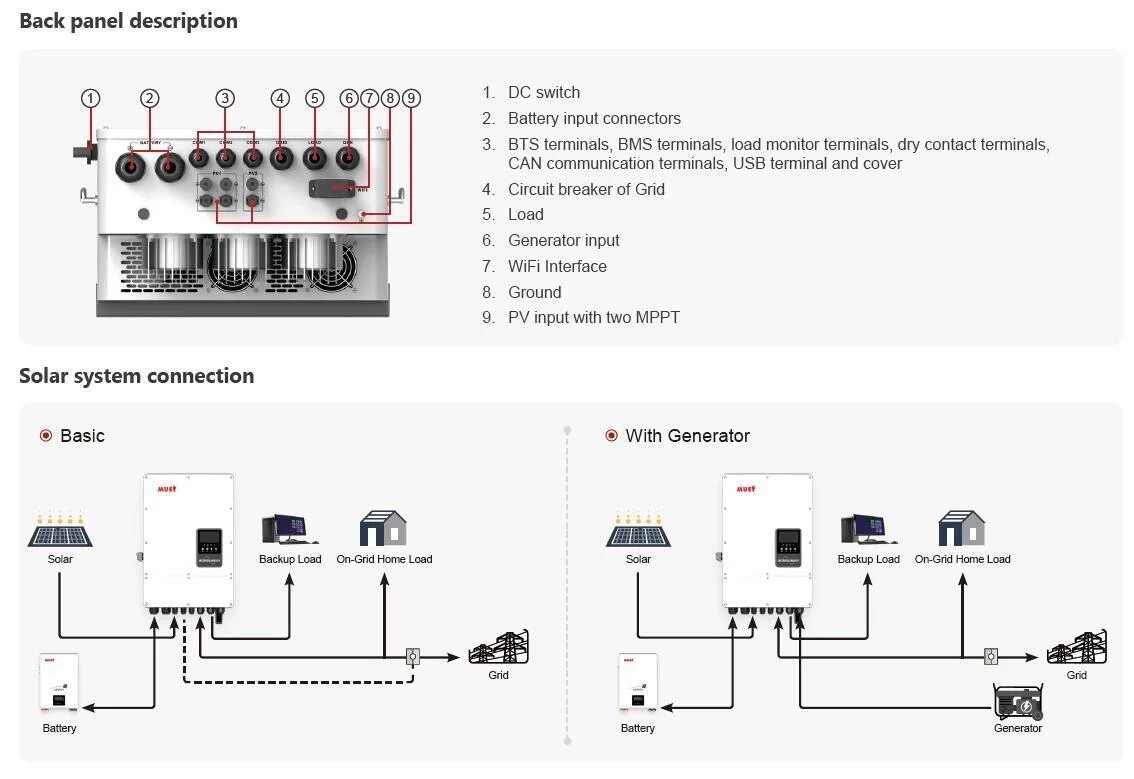

| MODEL | PH1100-5KL3-EU | PH1100-6.5KL3-EU | PH1100-8KL3-EU | PH1100-10KL3-EU | PH1100-12KL3-EU |
| Rated power | 5000W | 6500W | 8000W | 10000W | 12000W |
| BATTERY INPUT DATA |
| Battery type | Lead-acid battery / Lithium battery |
| Battery voltage | 48V |
| Battery voltage range | 40~60V |
| Charging curve | 3-stage adaptive with maintenance/Equalization |
| Charging Strategy for Li-lon Battery | Self-adaption to BMS |
| Over-current protection/ Over-temperature protection | Yes / Yes |
| Maximum charging/discharging power | 5000W | 6500W | 8000W | 10000W | 12000W |
| Maximum charging/discharging current | 120A | 150A | 190A | 210A | 240A |
| PV STRING INPUT DATA |
| Max. DC Input Power | 6500W | 8450W | 10400W | 13000W | 15600W |
| Rated PV Input Voltage | 550V |
| Maximum DC voltage | 800V |
| Start-up Voltage | 160V |
| Minimum voltage for grid connection | 310V |
| Full Load DC Voltage Range | 350-650V |
| Enter high voltage error recovery point | 800V |
| MPPT voltage range | 200~650V |
| Maximum input current | 15A/15A | 26A/13A |
| No.of MPP Trackers | 2 |
| No.of Strings per MPP Tracker | 1+1 | 2+1 |
| AC INPUT/OUTPUT DATA |
| Rated AC Input/ Output Power | 5000W | 6500W | 8000W | 10000W | 12000W |
| Max AC Input/ Output Power | 5500W | 7150W | 8800W | 11000W | 13200W |
| AC Input/ Output Rated Current | 7.6/7.2A | 9.8/9.42A | 12.1/11.6A | 15.2/14.5A | 18.2/17.4A |
| Max AC Input/ Output Current | 8.4/8A | 10.8/10.4A | 13.4/12.8A | 16.7/15.9A | 20/19.1A |
| Max. Three-phase Unbalanced Output Current | 11.4/10.9A | 14.7/14.1A | 18.2/17.4A | 22.7/21.7A | 27.3/26.1A |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage | 220/380,230/400Vac |
| Rated Input/Output Grid Frequency/Range | 50/60;45~55/55-65 |
| Grid Type | Three Phase |
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) |
| DC Current Injection | <0.5% In |
| EFFICIENCY |
| Max. Efficiency | ≥97.5% |
| Euro Efficiency | 97.0% |
| PROTECTION |
| Integrated | PV Arc Fault Detection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection |
| Surge Protection | DC Type III/AC Type III |
| Overvoltage Category | DC Type II/AC Type III |
| GENERAL DATA |
| Operating Temperature Range (°C) | -20°C to +60°C, >45°C Derating |
| Cooling | Smart cooling |
| Noise (dB) | ≤55dB |
| Communication with BMS | Wi-Fi/USB/GPRS/RS485/CAN |
| Machine Dimension (W*H*D)(mm) | 444*654.2*259.2 |
| Package Dimension (W*H*D)(mm) | 567*816*404 |
| N.W(kg) | 35 |
| G.W(kg) | 37 |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
| CERTIFICATION & STANDARDS |
| CE-EMC+LVD (EN6100-6-3, EN6100-6-1+EN IEC 62109-1, EN IEC 62109-2); CE-LVD(EN 62477-1) ; IEC 60529; EN50549-1; Poland Type A, (NC RfG:2016, PSE:2018, PTPiREE:2021)C10/C11; UNE217001-2020; UNE217002-2020, NTS-631 (Type A); G98+G99 |
