Must Inverter High Frequency Off Grid Solar Inverter MPPT 45A
Must Inverter High Frequency Off Grid Solar Inverter MPPT 45A
It is a cost effective, intelligent solar inverter which accepts Solar & Utility input at the same time. The comprehensive LCD display offers userconfigurable and easy-accessible button adjustment such as battery charging current, AC/solar charger priority and DC priority.When battery voltage is low,it will automatically switch to AC grid to supply continuous power to the loads.
Message

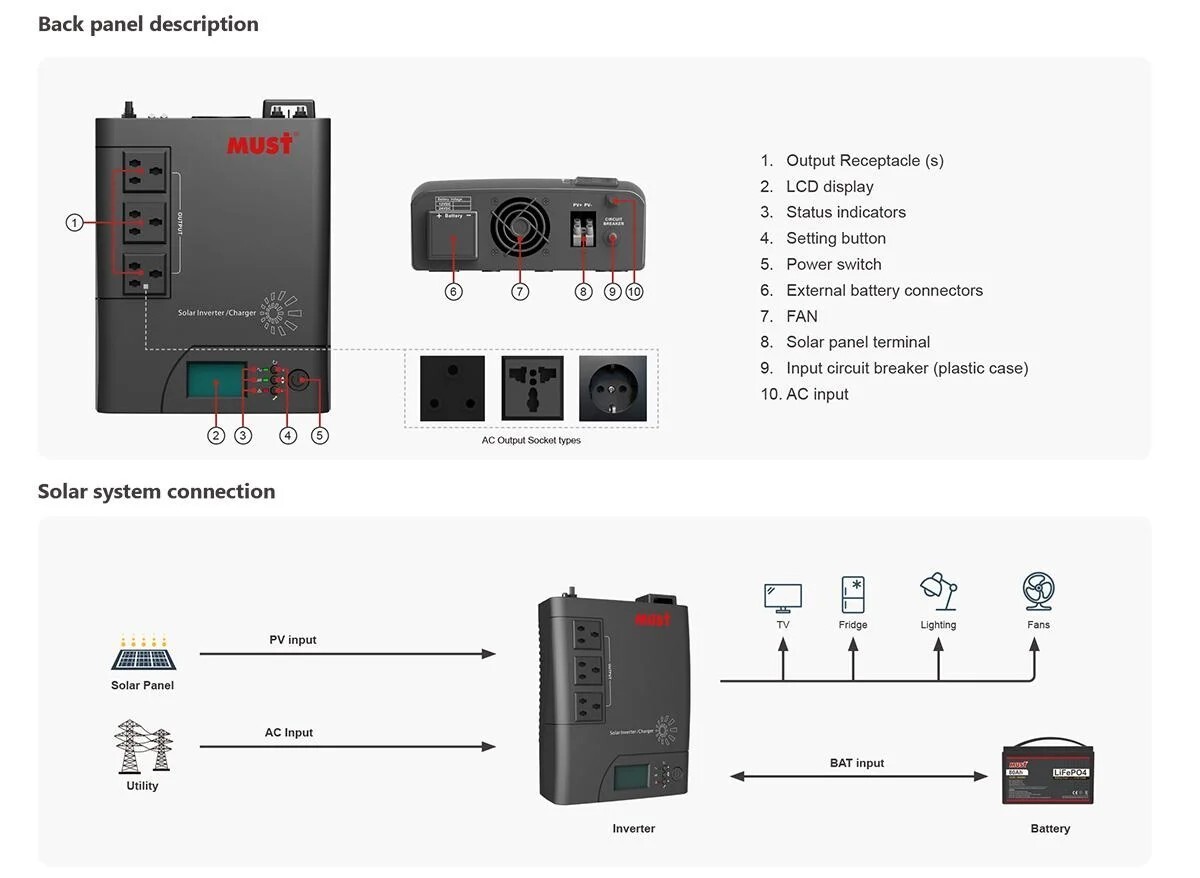

Must Inverter High Frequency Off Grid Solar Inverter MPPT 45A 1

MODELPV15-1012PV15-1512PV15-2024
Nominal Battery System Voltage12VDC12VDC24VDC
NVERTER OUTPUT
Rated Power1000VA / 600W1500VA/ 1000W2000VA / 1200W
WaveformPure Sine Wave
Nominal Output Voltage RMS230V
Output Voltage Regulation+10/-18%
Output Frequency50Hz / 60Hz ± 1Hz
Inverter Efficiency (Peak)>90%
Line Mode Efficiency>95%
Typical Transfer TimeTypical < 10ms , 20ms max
AC INPUT
Voltage230VAC
Voltage Range170~280VAC (UPS) / 90~280VAC (APL) / 184~258VAC (VDE)
Frequency Range50Hz/ 60Hz (auto sensing)
BATTERY
Note: Below Parameters (PB) Lead-acid Battery / (LI) LiFePO4 Lithium Battery Pack – 12V(4 Series) 24V(8 Series)
Nominal Input Voltage12VDC12VDC24VDC
Low Battery Cutoff10.5VDC(PB)11.5VDC(LI)10.5VDC(PB)11.5VDC(LI)21.0VDC(PB)23.0VDC(LI)
Low Battery Alarm11.0VDC(PB)12.0VDC(LI)11.0VDC(PB)12.0VDC(LI)22.0VDC(PB)24.0VDC(LI)
Low Battery Voltage Recover12.5VDC(PB)12.8VDC(LI)12.5VDC(PB)12.8VDC(LI)25.0VDC(PB)25.6VDC(LI)
High Battery Voltage Recover14.5VDC(PB)14.5VDC(LI)14.5VDC(PB)14.5VDC(LI)29.0VDC(PB)29.0VDC(LI)
High Battery Voltage Cutoff15.0VDC(PB)15.0VDC(LI)15.0VDC(PB)15.0VDC(LI)30.0VDC(PB)30.0VDC(LI)
SOLAR CHARGER & AC CHARGER
Charger Voltage boost14.4VDC(PB)14.4VDC(LI)14.4VDC(PB)14.4VDC(LI)28.8VDC(PB)28.8VDC(LI)
Charger Voltage float13.8VDC(PB)14.4VDC(LI)13.8VDC(PB)14.4VDC(LI)27.6VDC(PB)28.8VDC(LI)
Maximum PV Charge Current45A (max)
Maximum PV Array Power600W600W1200W
MPPT Operating Voltage Range14 ~ 75VDC14 ~ 75VDC28 ~ 75VDC
Maximum PV Array Open Voltage105V
Maximum Efficiency> 95%
AC Charging Current10A/20A (Can be set)10A/20A (Can be set)7A/15A (Can be set)
Maximum Charge Current AC+PV10~65A (Can be set)10~65A (Can be set)10~60A (Can be set)
BYPASS & PROTECTION
Overload Protection (SMPS Load)FUSE
Output Short Circuit ProtectionFUSE
Bypass Fuse Rating7A10A10A
Max Bypass Current7A10A10A
MECHANICAL SPECIFICATIONS
Machine Dimension (W*H*D)235*290*92mm224*337*98mm235*290*92mm
Package Dimension (W*H*D)595*375*315mm300*410*178mm595*375*315mm
N.W (kg)2.8kg3.6kg3.0kg
G.W (kg)3.5kg4.3kg3.7kg
MaterialPlastic caseMetal casePlastic case
OTHER
Operation Temperature Range0℃ to 40℃
Audible Noise50dB MAX
DisplayLED+LCD
CERTIFICATION & STANDARDS
CE
