Must Inverter High Frequency Off Grid Solar Inverter 8kw 9kw 10kw
Must Inverter High Frequency Off Grid Solar Inverter 8kw 9kw 10kw
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Message

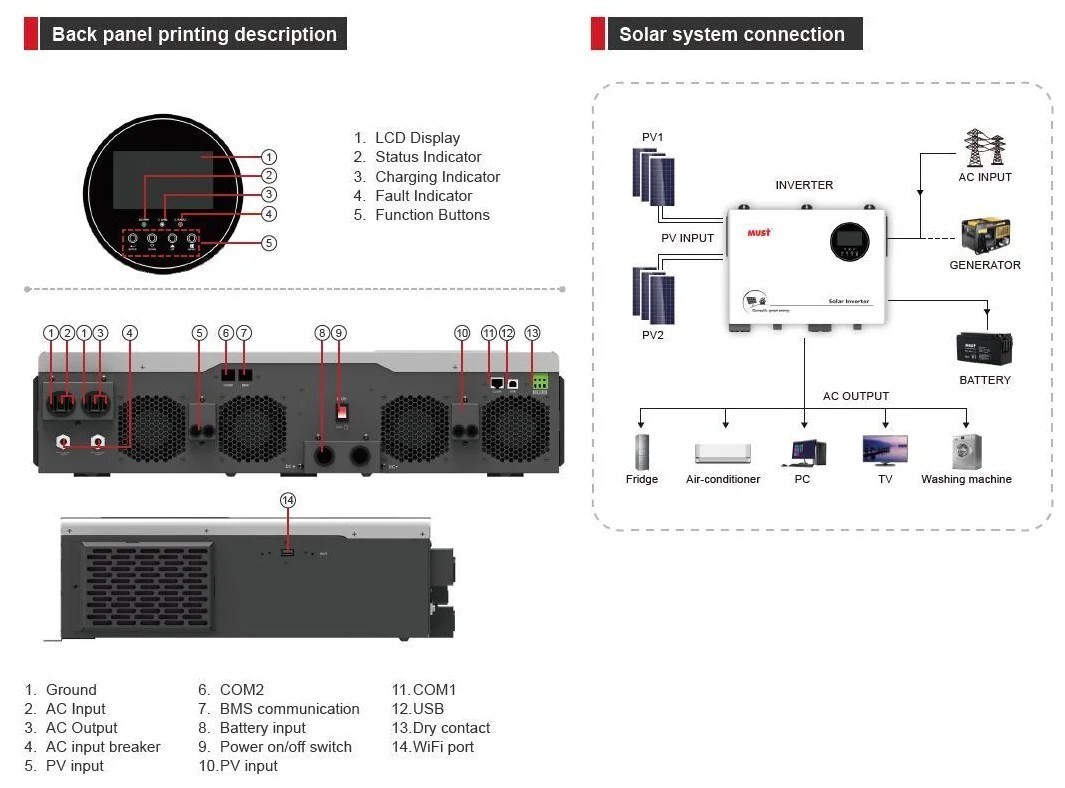

Must Inverter High Frequency Off Grid Solar Inverter 8kw 9kw 10kw 1

MODELPV18-8048 PROPV18-10048 PRO
Nominal Battery System Voltage48VDC
INVERTER OUTPUT
Rated Power8000W10000W
Surge Power16000W20000W
WaveformPure Sine Wave
AC Voltage Regulation (Batt.Mode)230VAC±5%
Output Frequency60Hz or 50Hz
Inverter Efficiency(Peak)90%
Transfer Time10ms (UPS) 20ms (APL)
AC INPUT
Nominal Input Voltage230VAC
Max AC Input Voltage300VAC
Selectable Voltage Range170~280VAC (UPS) / 90~280VAC (APL) / 184~253VAC(VDE4105)
Frequency Range50Hz / 60Hz(Auto detection)
SOLAR CHARGER & AC CHARGER
AC Charging Current2-120A2-160A
Maximum PV Array Open Circuit Voltage450VDC
PV Array Open Circuit Voltage150-430VDC
Cold Start Voltage46VDC
Solar Charging Current80A/80A100A/100A
Default Charging Current80A/80A
Maximum Charge Current80A/80A100A/100A
Charging Algorithm3-step (Flooded Battery / AGM / GEL/ LEAD Battery), 4-step(LI)
MECHANICAL SPECIFICATIONS
Machine Dimension (W*H*D)600*503*141.2mm
G.W (kg)21kg
OTHER
Safety CertificationCE
Operating Temperature-10°C~50°C
Storage Temperature-15°C ~60°C
